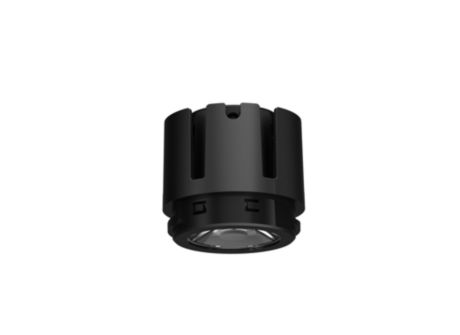

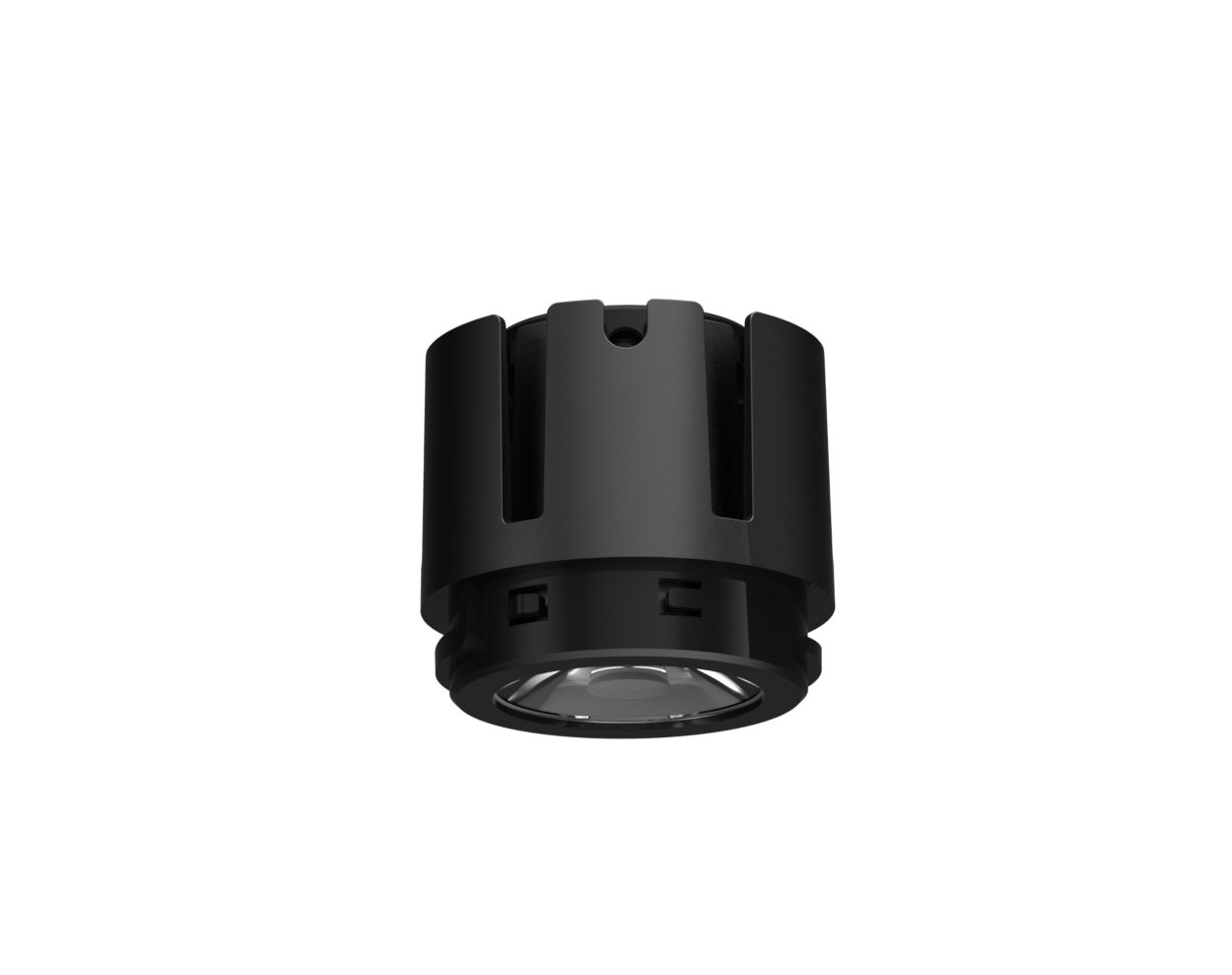

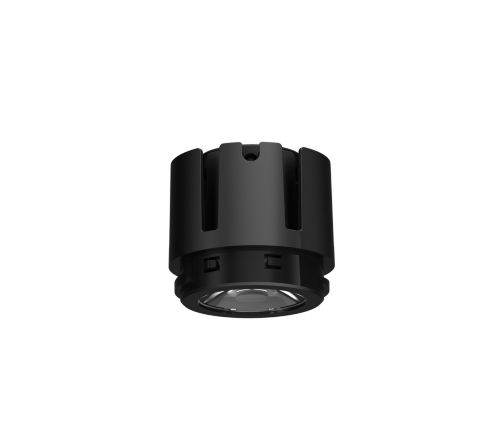

RS378B P6 940 PSD-E NB M55

Specifications Show all

Operating and Electrical

Power Consumption	6 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.83
Input Frequency	50 or 60 Hz
Number of products on MCB of 16 A type B	-

Approval and Application

Mech. impact protection code	IK04  [0.5 J standard plus]
CE mark	-
Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class II

Product Data

Full product name	RS378B P6 940 PSD-E NB M55
Material number (12NC)	911401535571
Order code	911401535571
Order product name	RS378B P6 940 PSD-E NB M55
Numerator - Packs per outer box	36
Numerator - Quantity Per Pack	1
Full product code	911401535571

Controls and Dimming

Dimmable	Yes
Control interface	DALI

Mechanical and Housing

Housing Color	Dark gray
Optical cover/lens finish	-
Housing Material	Aluminum Alloy
Optical cover/lens material	-

General Information

Light source engine type

LED

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +45 °C

Light Technical

Color rendering index (CRI)	>90
Correlated Color Temperature (Nom)	4000 K
Light source color	940 neutral white
Luminous Efficacy (rated) (Nom)	82 lm/W
Optical cover/lens type	-
Luminous Flux	492 lumen
