        Product family information

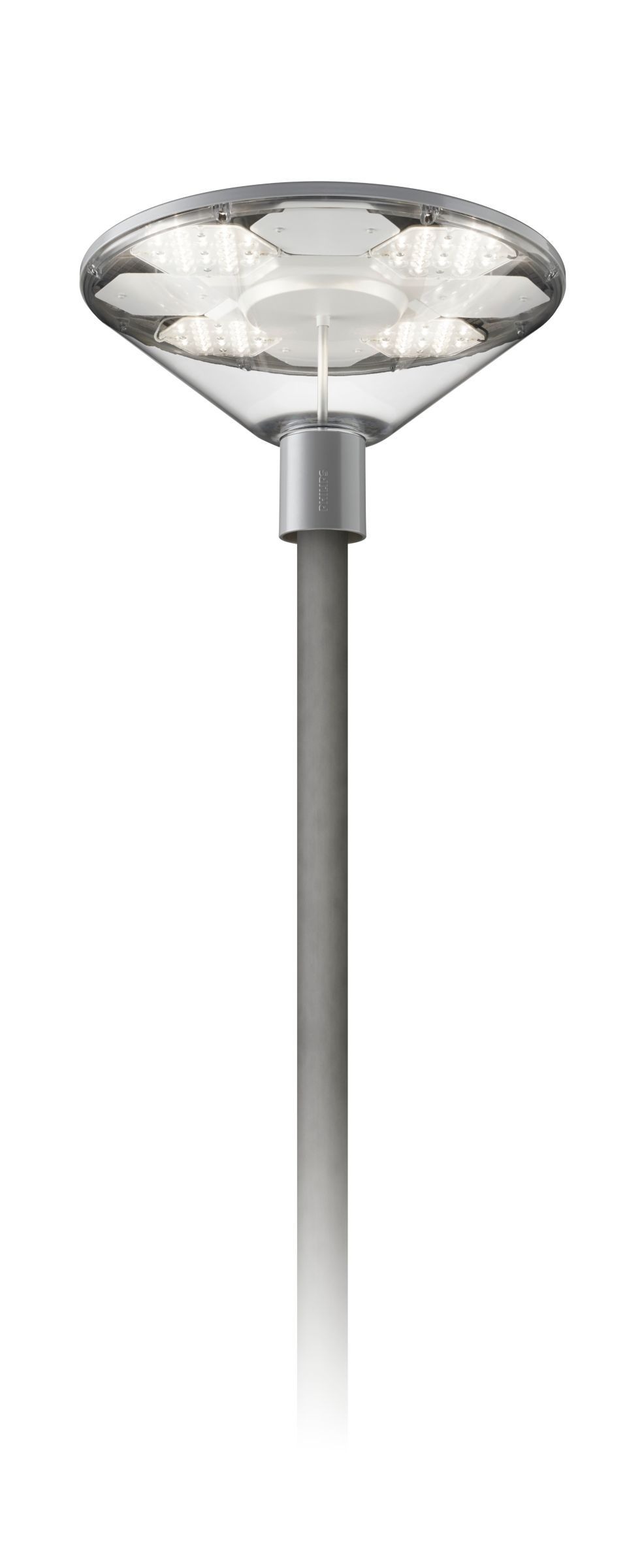

        The TownGuide Performer family consists of six recognizable yet modern shapes: Flat Cone, Bowl, Classic Cone, Classic, T and Tzero. All are available with a clear bowl. Except for Tzero, also a frosted bowl can be chosen. With an extensive range of lumen packages and a choice of light colors and operating lifetimes, it is easy to select the version that best suits your project’s specific requirements. In addition, TownGuide Performer has a variety of control system options that can make it an integral part of your smart energy-reduction programs – from stand-alone LumiStep and DynaDimmer, SDU switch-dim control, through to seamless remote connectivity with CityTouch lighting management software. Installation is easy. Thanks to the bayonet whistle connector with integrated gland located in the spigot, the luminaire does not have to be opened at all for installation. Philips has made every effort to make the Total Cost of Ownership (TCO) of the luminaire as attractive as possible. And as TownGuide Performer is a dedicated LED luminaire, compatible with a variety of control systems, the energy and maintenance cost savings compared to conventional lighting are significant.


        Six recognizable yet modern designs that blend in with, and enhance, their surroundings
        LED light sources, in combination with a wide choice of optics, ensure that the optimal configuration can be obtained for your application. The state-of-the-art LEDs increase visual comfort for motorists, cyclists and pedestrians.
        Considerable reduction in energy usage and carbon footprint compared to HPL mercury, SON-T and PL-L compact fluorescent lamps; further energy savings achievable when using CLO or dimming options (can amount to as much as 80% compared to HPL mercury)


        Dedicated LED luminaire, optimized for minimum Total Cost of Ownership
        Wide choice of lumen packages, ranging from 1,200 to 7,000 lumens (GRN) or 4,000 to 12,000 lumens (ECO)
        Choice of light colors 3000 K (warm white) and 4000 K (neutral white)
        Long lifetime of 100,000 hours (GRN) or 80,000 hours (ECO) at L80B10
        Bayonet whistle connector for easy installation without opening the luminaire
        Suitable for new installations or one-to-one replacement in existing installations
        Vandal-resistant (IK10), ingress protection (IP66)
        TailorFit PCB technology
        Standard 3-year warranty program; as a service, we offer extended warranties or lifecycle services


        Residential areas: residential streets, cycle paths & footpaths, roundabouts, squares, parks & playgrounds, parking areas
        City centers: side streets, squares, parks & playgrounds, cycle paths & footpaths, parking areas, roundabouts, shopping & pedestrian areas
        Area and Transportation: industrial areas, parking areas, petrol stations, airports, harbors, public transport areas
        Sports: parking areas
        Product Data Sheets
        Software Plugins
        Related tools
        Product family details
        • BDP100 (flat cone version)
        • BDP101 (bowl version)
        • BDP102 (classic cone version)
        • BDP103 (classic T version)
        • BDP104 (T version)
        • BDP105 (Tzero version)
        Light source
        • Integral LED-module
        • 10 to 98 W depending on LED configuration and colour temperature
        Luminous flux
        • GreenLine: 1,200, 1,500, 2,000, 2,500, 3,000, 3,500, 4,000, 5,000, 6,000 or 7,000 lm
        • EconomyLine: 4,000, 5,000, 6,000, 7,000, 8,000, 9,000, 10,000, 11,000 or 12,000 lm
        Luminaire efficacy
        • GreenLine: 84 to 112 lm/W (for clear bowl; 4,000 K version)
        • EconomyLine: 93 to 108 lm/W (for clear bowl; 4,000 K version)
        Correlated Colour Temperature
        • 3,000 K (warm white)
        • 4,000 K (neutral white)
        Colour Rendering Index
        • ≥ 80
        Lumen maintenance at median useful life* 100,000 h
        • up to L98
        Control gear failure rate at median useful life 100,000 h
        • 10%
        Performance Ambient Temperature Tq
        • +25 ºC
        Operating temperature range
        • -20 to +35 ºC
        • Integrated programmable LED driver
        Power/Data supply
        • Philips Xitanium Prog+
        Mains voltage
        • 120-277 V / 50-60 Hz
