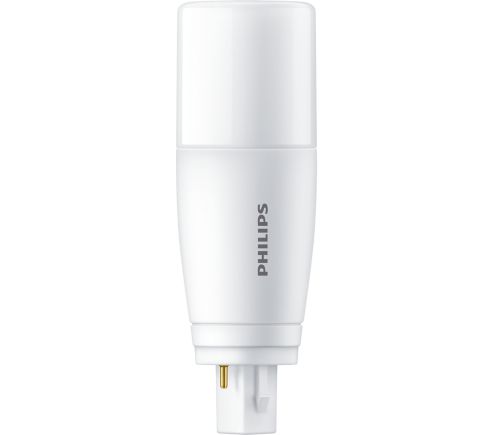

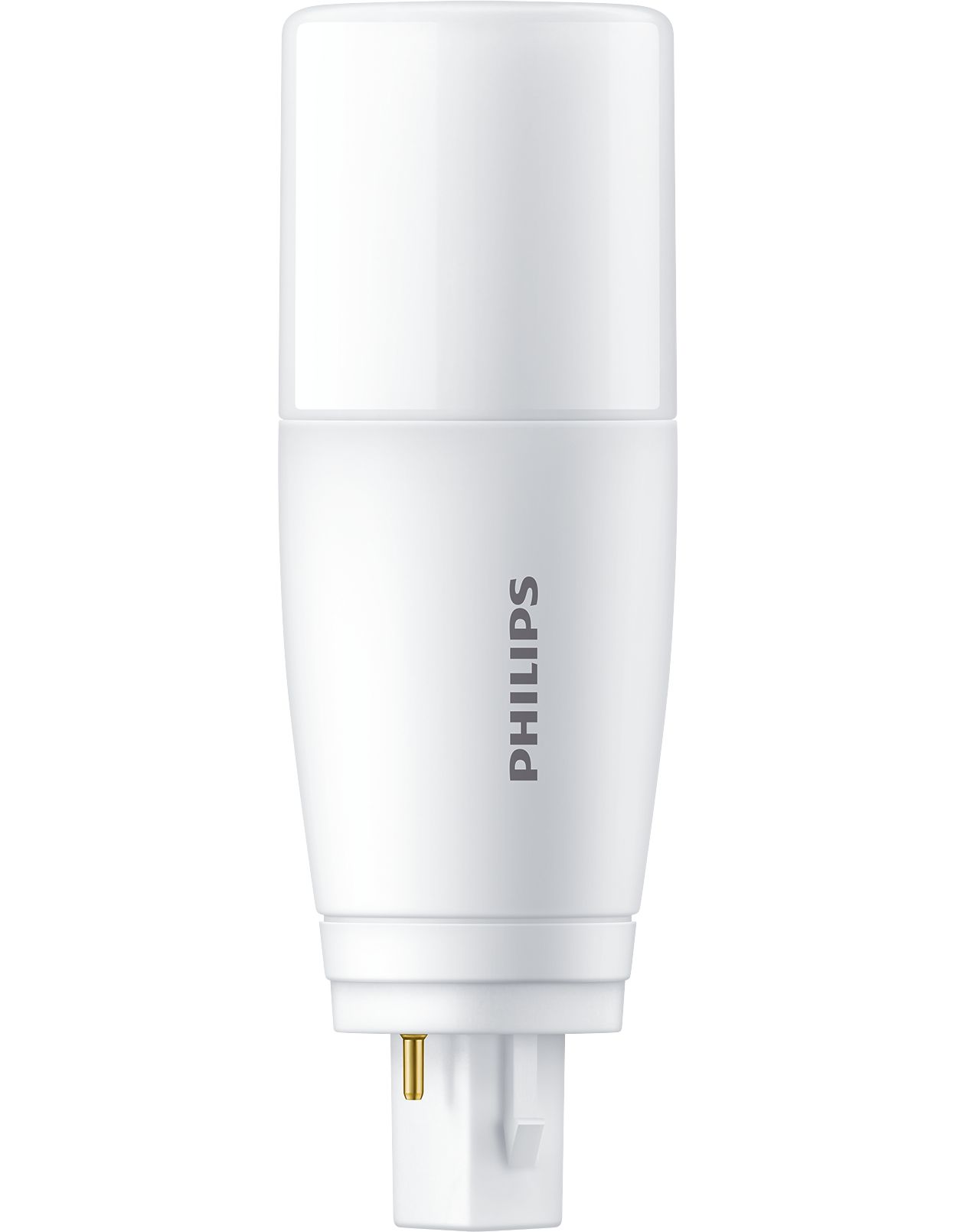

LED PLC 11W 865 2P G24D

Specifications Show all

General information

Cap base	G24D  [ G24d]
EU RoHS compliant	Yes

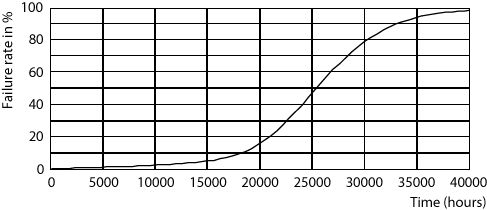

Nominal lifetime (nom.)	15000 h
Switching cycle	50000

Light technical

Colour Code	865  [ CCT of 6,500 K]
Technical Beam Angle (Nom)	240 °
Lamp Luminous Flux 25°C EL (Nom)	1400 lm
Colour Designation	Cool Daylight
Colour Temperature, horizontal (Nom)	6500 K
Lamp Luminous Efficacy EM (Nom)	127.00 lm/W
Colour consistency	<6
Colour Rendering Index,horiz (Nom)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	11 W
Lamp current (max.)	86 mA
Lamp current (min.)	86 mA
Lamp current (nom.)	86 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.5
Voltage (Nom)	220-240 V

Temperature

T-ambient (max.)	45 °C
T-ambient (min.)	-20 °C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	67 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Product length	100 mm
Bulb shape	PL-C

Approval and application

Energy-saving product	Yes
Approval marks	RoHS compliance	CE marking	KEMA Keur certificate
Energy consumption kWh/1,000 hours	- kWh

Product data

Full product code	871951425882200
Order product name	LED PLC 11W 865 2P G24D
EAN/UPC – product	8719514258822
Order code	929002440408
SAP numerator – quantity per pack	1
Numerator – packs per outer box	10
SAP material	929002440408
Net Weight (Piece)	0.072 kg
