    • The flexible light line

      SM350C 50S/840 PSU PCS L1500 ALU
      LED
      SM350C 50S/840 PSU PCS L1500 ALU

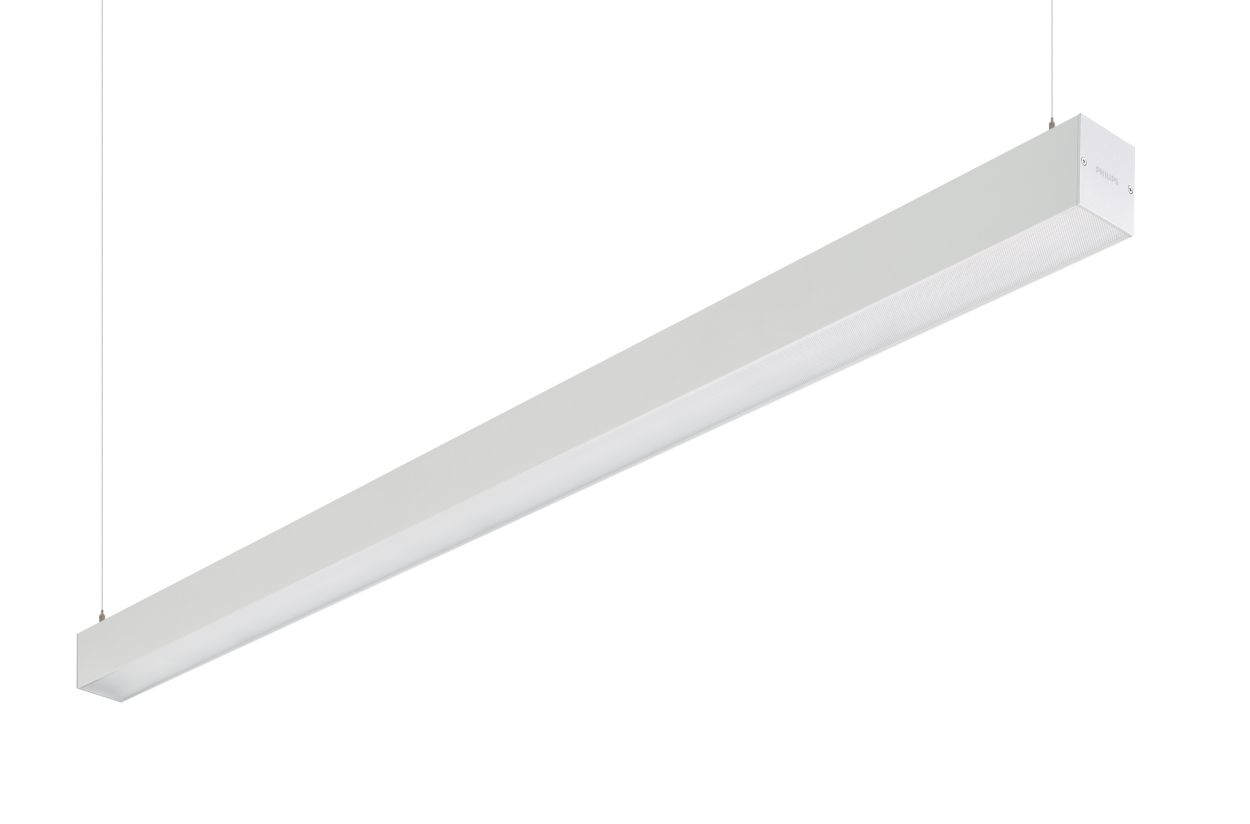

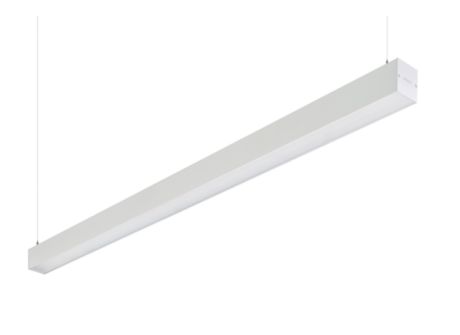

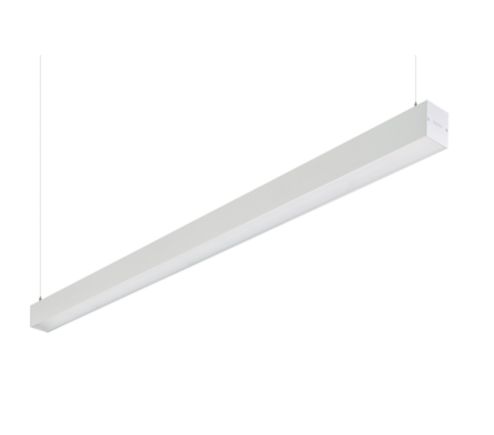

      KeyLine, Suspended

      SM350C 50S/840 PSU PCS L1500 ALU

    Specifications Show all

    Operating and Electrical
    Line Frequency
    50 to 60 Hz
    Power Consumption
    37 W
    Input Voltage
    220 to 240 V
    Power Factor (Fraction)
    0.9
    Inrush current
    22.4 A
    Cable
    -
    Number of products on MCB of 16 A type B
    24
    Inrush time
    326 ms
    Connection
    Push-in connector 3-pole
    Input Frequency
    50 to 60 Hz
    Over Time Performance (IEC Compliant)
    Lumen maintenance at median useful life* 100000 h
    L80
    Lumen maintenance at median useful life* 50000 h
    L90
    Control gear failure rate at median useful life 50000 h
    5 %
    Product Data
    Full product name
    SM350C 50S/840 PSU PCS L1500 ALU
    Material number (12NC)
    910925868379
    Order code
    910925868379
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8719514624436
    Full product code
    871951462443600
    Order product name
    SM350C 50S/840 PSU PCS L1500 ALU
    Numerator - Packs per outer box
    1
    Approval and Application
    Sustainability rating
    -
    Mech. impact protection code
    IK02  [0.2 J standard]
    Protection class IEC
    Safety class I
    Photobiological risk
    Photobiological risk group 0 @200mm to EN62778
    EU RoHS compliant
    Yes
    Ingress protection code
    IP20  [Finger-protected]
    CE mark
    Yes
    Flammability mark
    For mounting on normally flammable surfaces
    Warranty period
    5 years
    Glow-wire test
    Temperature 850 °C, duration 30 s
    ENEC mark
    ENEC mark
    Controls and Dimming
    Constant light output
    No
    Control interface
    -
    Dimmable
    No
    Driver/power unit/transformer
    Power supply unit (ON/OFF)
    General Information
    Light source replaceable
    No
    Driver included
    Yes
    Product family code
    SM350C  [KeyLine]
    Number of gear units
    1 unit
    Value ladder
    Performance
    Lighting Technology
    LED
    Mechanical and Housing
    Reflector material
    Steel
    Overall width
    70 mm
    Dimensions (Height x Width x Depth)
    70 x 70 x 1407 mm
    Optic material
    Polycarbonate
    Overall length
    1,407 mm
    Fixation material
    Stainless steel
    Housing Color
    Aluminum
    Optical cover/lens finish
    Textured
    Housing Material
    Aluminum
    Optical cover/lens material
    Polycarbonate
    Overall height
    70 mm
    Application Conditions
    Suitable for random switching
    No
    Maximum dim level
    Not applicable
    Performance ambient temperature Tq
    25 °C
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.39, 0.38) SDCM <3
    Luminous flux tolerance
    +/-10%
    Power consumption tolerance
    +/-10%
    Temperature
    Ambient temperature range
    +10 to +35 °C
    Light Technical
    Color rendering index (CRI)
    >80
    Correlated Color Temperature (Nom)
    4000 K
    Light source color
    840 neutral white
    Beam angle of light source
    120 degree(s)
    Optic type
    Medium beam
    Luminous Flux
    5,000 lumen
    Flickering value (PstLM)
    1
    Luminous Efficacy (rated) (Nom)
    135 lm/W
    Unified glare rating CEN
    19
    Stroboscopic effect value (SVM)
    0.4
    Luminaire light beam spread
    74° x 74°
    Saturated Red (R9)
    <50
    Installation Diagrams
    KeyLine_DD_linear
    KeyLine_DD_linear
    Downloads
    Product Data Sheets
    Visuals
    Brochures
    Software Plugins
    • IES IES File - SM350C 50S/840 PSU PCS L1500 ALU IES 8.5 kB
