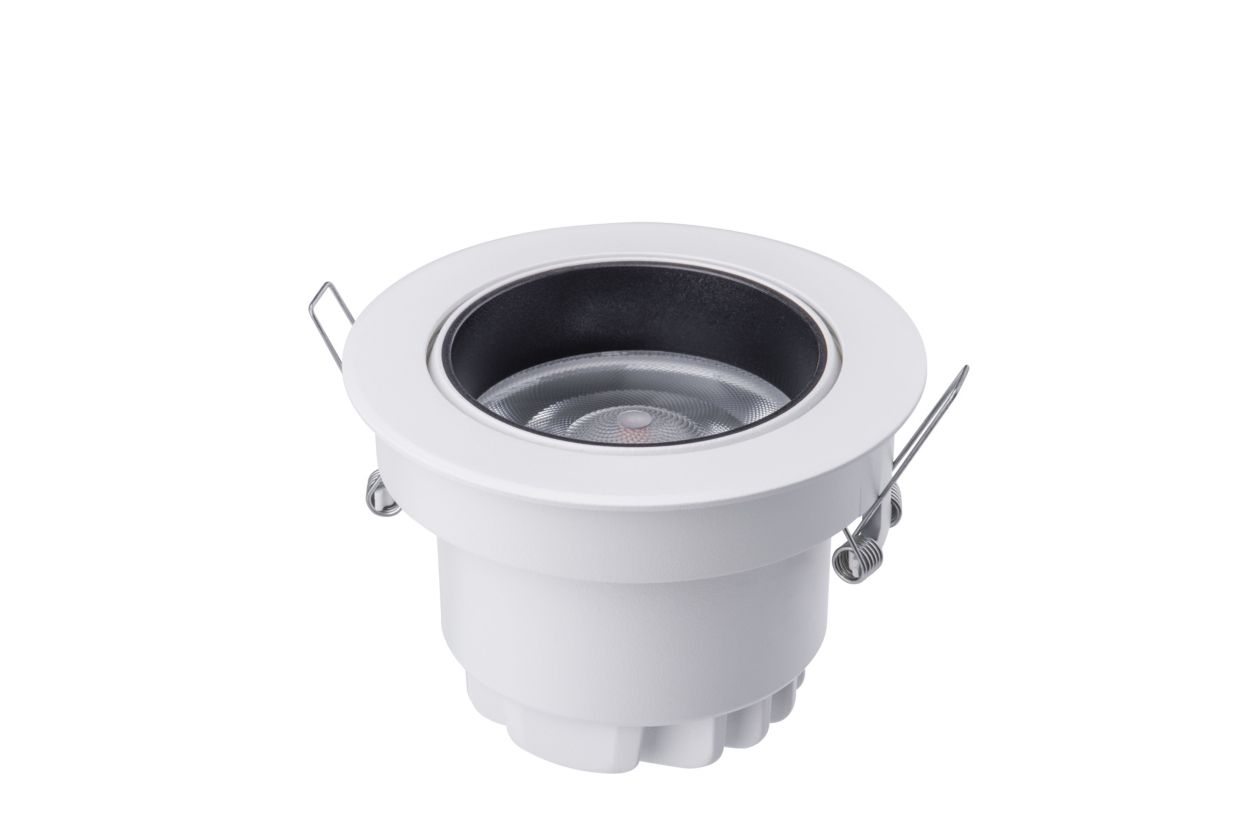

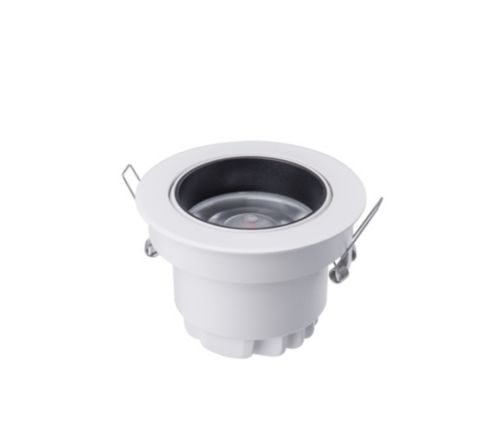

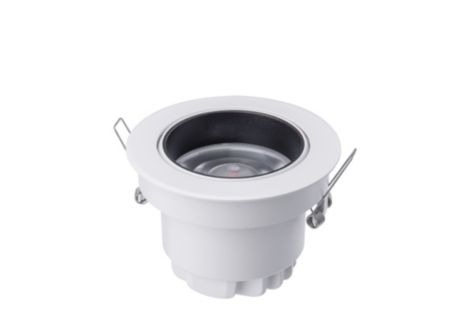

RS700B LED10 830 PSU MB WH YM

Specifications Show all

General information

Lamp colour code	830 warm white
Optical cover/lens type	Lens
Control interface	-
Protection class IEC	Safety class II (II)
CE mark	CE mark
Number of products on MCB (16 A type B)	1
Light source engine type	LED

Operating and electrical

Input Voltage	220 to 240 V
Input frequency	50 or 60 Hz
Power factor (min.)	0.91

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Aluminium
Optical cover/lens material	Polymethyl methacrylate
Optical cover/lens finish	-
Overall height	70 mm
Overall diameter	96 mm
Colour	White RAL 9003
Dimensions (height x width x depth)	70 x NaN x NaN mm

Approval and application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	-

Initial performance (IEC compliant)

Initial luminous flux (system flux)	979 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	121 lm/W
Lamp colour temperature	3000 K
Colour Rendering Index	>80
Initial input power	8 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-15 to +35 °C

Product data

Full product code	911401519171
Order product name	RS700B LED10 830 PSU MB WH YM
Order code	911401519171
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401519171
Net Weight (Piece)	0.400 kg
