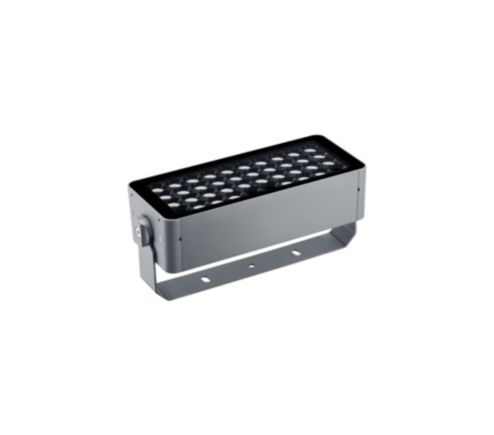

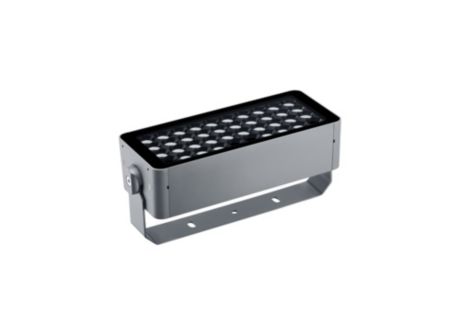

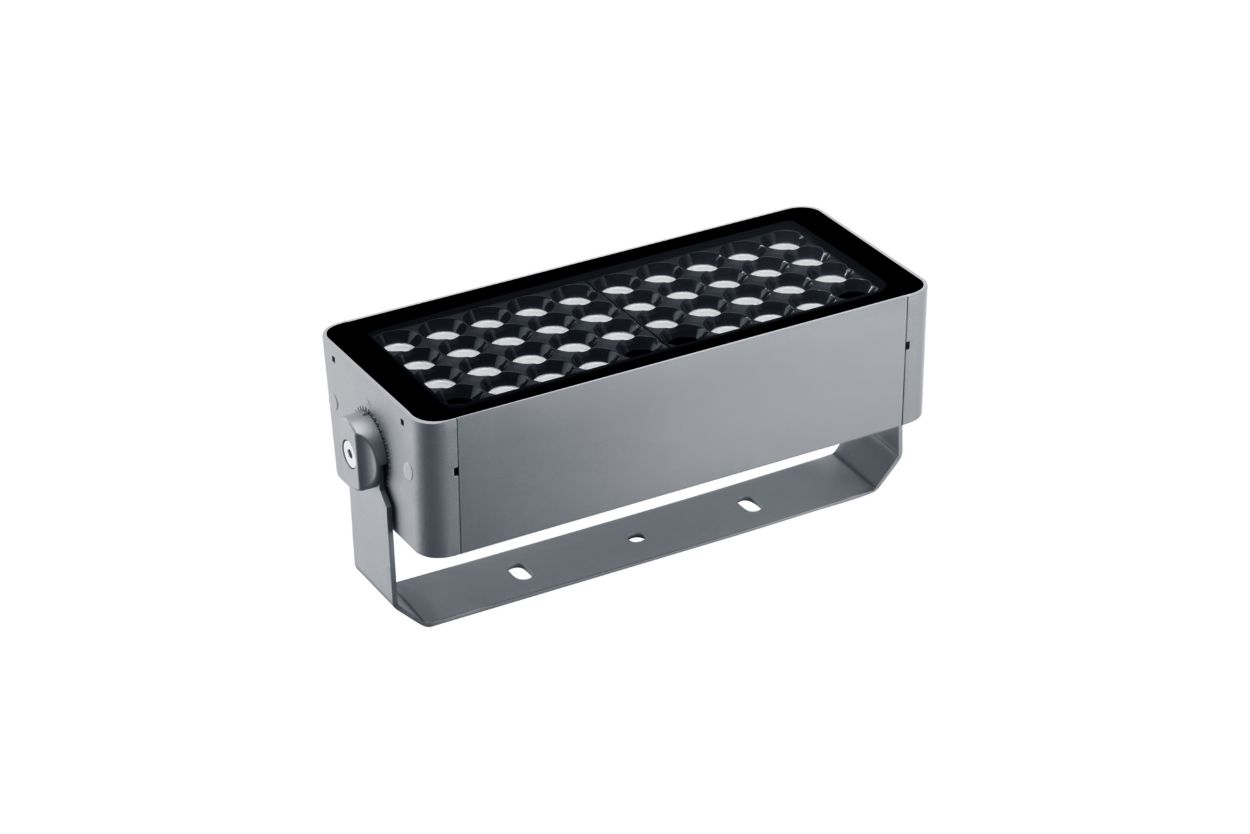

BVP353 36LED RGBWW 220V L35 15 DMX

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Power Consumption	80 W
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.95
Cable	Cable 0.5 m without plug 3-pole and 2 Cables 0.5 m with connector 4-pole
Input Frequency	50 to 60 Hz
Connection	Flying leads/wires and 2 Push-in connector 4-pole

Product Data

Full product name	BVP353 36LED RGBWW 220V L35 15 DMX
Material number (12NC)	911401747383
Order code	911401747383
Order product name	BVP353 36LED RGBWW 220V L35 15 DMX
Numerator - Packs per outer box	4
Numerator - Quantity Per Pack	1
EAN/UPC - Case	8719514926592
Full product code	871951492659299

Approval and Application

Mech. impact protection code	IK06  [1 J]
Protection class IEC	Safety class I
Flammability mark	For mounting on normally flammable surfaces
CE mark	CE mark
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]

Controls and Dimming

Control interface	Dynamic DMX/RDM
Dimmable	Yes

Mechanical and Housing

Overall width	140 mm
Dimensions (Height x Width x Depth)	149 x 140 x 348 mm
Effective projected area	0.056 m²
Overall length	348 mm
Housing Color	Dark gray
Housing Material	Aluminum extruded
Optical cover/lens material	Acrylate
Overall height	149 mm

General Information

Lighting Technology	LED
Driver included	Yes

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Color rendering index (CRI)	>80
Correlated Color Temperature (Nom)	-
Light source color	RGBW
Luminous Efficacy (rated) (Nom)	48 lm/W
Luminous Flux	3,825 lumen
Optical cover/lens type	Clear glass
