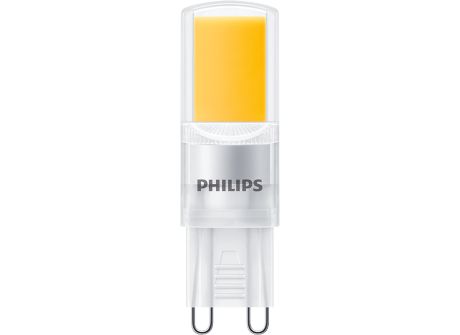

CorePro LEDcapsule 3.2-40W ND G9 830

Specifications Show all

Operating and Electrical

Power Consumption	3.2 W
Line Frequency	50 to 60 Hz
Power Factor (Fraction)	0.4
Wattage Equivalent	40 W
Voltage (Nom)	220-240 V
Input Frequency	50 to 60 Hz
Lamp Current (Nom)	30 mA
Warm-up time to 60% light	0.5 s
Starting Time (Nom)	0.5 s

Product Data

Full product name	CorePro LEDcapsule 3.2-40W ND G9 830
Material number (12NC)	929002495602
Order code	929002495602
EAN/UPC - Case	8719514303966
Order product name	CorePro LEDcapsule 3.2-40W ND G9 830
Numerator - Packs per outer box	12
Numerator - Quantity Per Pack	1
Full product code	871951430395900

Approval and Application

Energy Consumption kWh/1000 h	4 kWh
EPREL Registration Number	453,191
Energy Efficiency Class	E
Suitable For Accent Lighting	No
CE mark	Yes
EU RoHS compliant	Yes

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	Capsule
Bulb Finish	Clear

General Information

Flux measurement reference	Sphere
Cap-Base	G9  [G9]
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)
Switching Cycle	8,000

Temperature

T-Case Maximum (Nom)

82 °C

Light Technical

Color rendering index (CRI)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	3000 K
Color Designation	White (WH)
Luminous Efficacy (rated) (Nom)	125.00 lm/W
Color Code	830  [CCT of 3000K]
Luminous Flux	400 lumen
Color Consistency	<6
