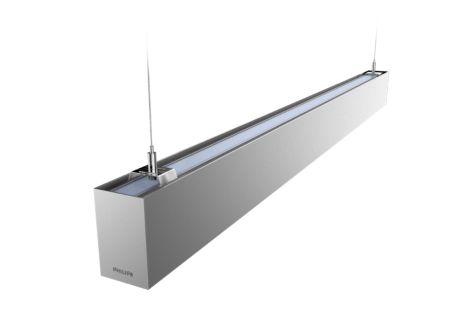

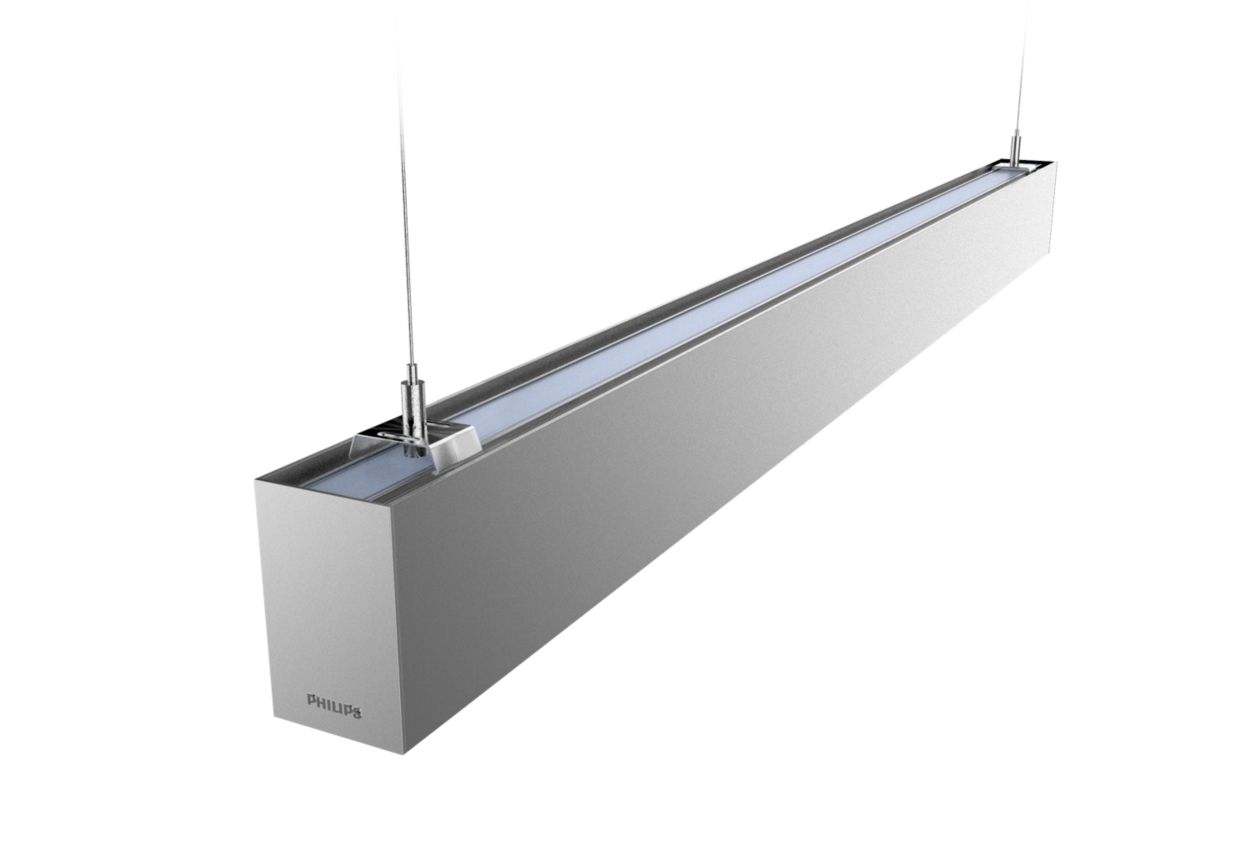

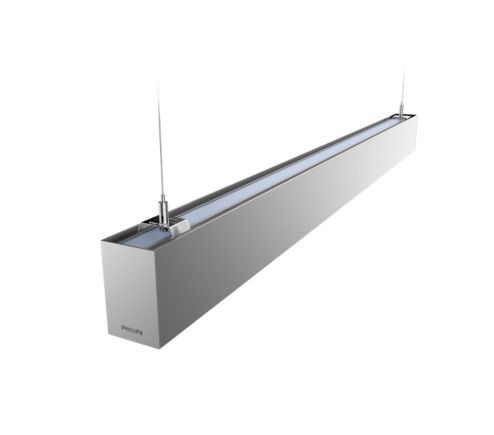

SP781 X LED22S-4000 PSU W6L112 OD SI EX

Specifications Show all

Operating and Electrical

Power Consumption	19 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.9
Input Frequency	50 or 60 Hz

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Product Data

Full product name	SP781 X LED22S-4000 PSU W6L112 OD SI EX
Material number (12NC)	919515898177
Order code	919515898177
Order product name	SP781 X LED22S-4000 PSU W6L112 OD SI EX
Numerator - Packs per outer box	4
Numerator - Quantity Per Pack	1

Approval and Application

Mech. impact protection code	IK02  [0.2 J standard]
Surge Protection (Common/Differential)	Surge protection level until 2 kV
Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class I
Warranty period	1 years
Flammability mark	For mounting on normally flammable surfaces

Controls and Dimming

Dimmable	No
Control interface	-

Mechanical and Housing

Overall width	60 mm
Dimensions (Height x Width x Depth)	98 x 60 x 1122 mm
Optical cover/lens shape	Flat
Optic material	Polycarbonate
Overall length	1,122 mm
Material	Aluminum
Overall height	98 mm
Housing Color	Aluminum and gray
Mounting device	Suspension set simple, standard
Housing Material	Aluminum extruded
Optical cover/lens material	Polycarbonate

General Information

Light source engine type	LED
Driver included	Yes
Value ladder	Performance

Initial Performance (IEC Compliant)

Initial chromaticity	<5
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

0 to +45 °C

Light Technical

Upward light output ratio	0.33
Color rendering index (CRI)	>80
Correlated Color Temperature (Nom)	4000 K
Beam angle of light source	- degree(s)
Light source color	840 neutral white
Luminous Efficacy (rated) (Nom)	116 lm/W
Optical cover/lens type	Polycarbonate Diffuser
Optic type	-
Luminous Flux	2,200 lumen
Luminaire light beam spread	-
