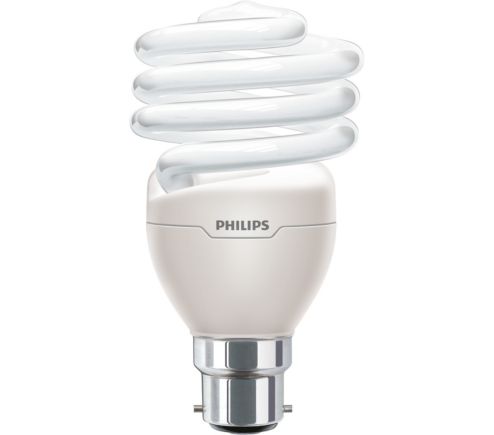

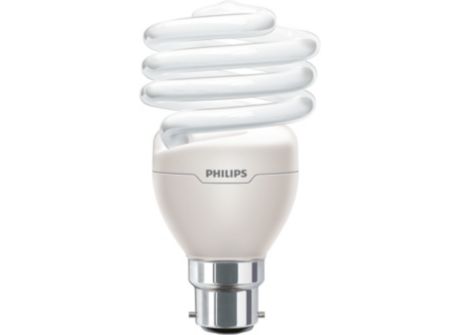

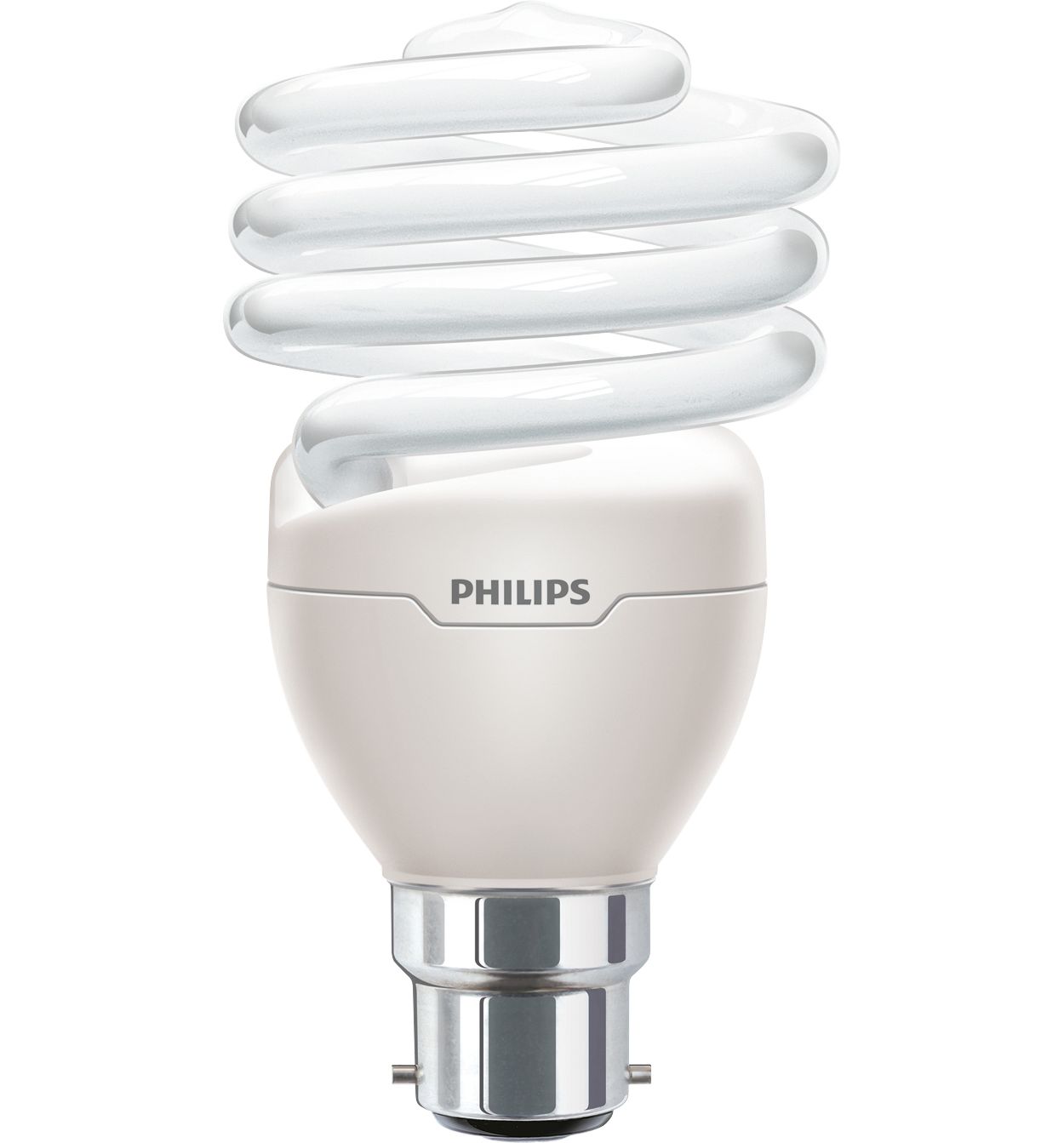

TORNADO 24W CDL B22 220-240V 1PF/6

Specifications Show all

General information

Cap base	B22  [ B22]
Nominal lifetime (nom.)	8000 h
Switching cycle	5,000X
Rated Lifetime	8000 h
Rated Lifetime (Years)	8 a

Light technical

Colour Code	865  [ CCT of 6,500 K]
Lamp Luminous Flux 25°C EL (Nom)	1450 lm
Lamp Luminous Flux (Nom)	1450 lm
Colour Designation	Cool Daylight
Lumen maintenance 2,000 hours (nom.)	85 %
Lumen maintenance 5,000 hours (nom.)	75 %
Chromaticity coordinate X (nom.)	313
Chromaticity coordinate Y (nom.)	337
Colour Temperature, horizontal (Nom)	6500 K
Lamp Luminous Efficacy EM (Nom)	63 lm/W
Colour Rendering Index,horiz (Nom)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and electrical

Input frequency	50 or 60 Hz
Power (Rated) (Nom)	23 W
Lamp current (nom.)	170 mA
Starting time (nom.)	0.3 s
Warm-up time to 60% light (min.)	5 s
Warm-up time to 60% light (max.)	60 s
Power factor (nom.)	0.6
Voltage (Nom)	220-240 V

Controls and dimming

Dimmable

No

Mechanical and housing

Bulb shape

Spiral

Approval and application

Mercury (Hg) content (nom.)	2 mg
Energy consumption kWh/1,000 hours	23 kWh

Product data

Full product code	871829113817400
Order product name	TORNADO 24W CDL B22 220-240V 1PF/6
EAN/UPC – product	8718291138174
Order code	929689858602
SAP numerator – quantity per pack	1
Numerator – packs per outer box	6
SAP material	929689858602
Net Weight (Piece)	0.077 kg
